Information Technology Equipment

Variable Power Supply

Manufacture
UNI-T
Country Origin
China
Model No
UT 1306
Specification
Rated output current : 0~6A
Output Power : 192W
Load regulation rate voltage : <0.3% + 5mv
Current :<0.2%+3mA
Power Regulation rate voltage : < 0.3%+5mv
Current : <0.2%+3mA
Set resolution voltage : 10mV
Current : 1mA
Readback resolution voltage: 10mV
Current : 1mA
Setting Accuracy (25 ̊C ±5 ̊C )
Voltage : 0.5%+mV
Current :< 0.2% +3mA
Ripple and Noise (20Hz~ 20Mhz) Voltage : ≤10mVrms
Current :≤2mArms
Display Type : LED digital tube display
Voltage : AC 110V / 220V (can shift ) ±10%
Frequency : 50Hz /60Hz

Load Balance Broadband Router

Manufacture
Cisco
Country Origin
China
Model No
SRX300-SYS-JB
Specification
SRX300-SYS-JB (junos OS software Version tested: Junos OS 15.1×49 Firewall performance (max) : 1Gbs IPS performance 100Mbps AES256+SHA-1 /DES+-1VPN performance : 250Mbps maximun concurrent sessions : 64,000New sessions/second (sustained,TCP, 3way) :5000

Cisco ISR4221 Router

Manufacture
Cisco
Country Origin
China
Model No
ISR4221/K9
Specification
ISR4221/K9(datasheet:2nim slots,1 ISC slots,transmission speed:10/100/1000Mbps Typical power n(without module )24W maximum power :90W AC 100-240V ,47-64Hz,1.5-0.6A Network throughput :35-75mbps)

Cisco wireless router

Manufacture
Cisco
Country Origin
China
Model No
RV 130W-E-K9-CN
Specification
Cisco wireless Router RV 130w-W-e-k9-cn (IEEE 802 11g IEEE 802lb,IEEE 802.1 ln, 10/100/1000Mbps , 300Mpbs ,Nat throughput 800 Mbps Concurrent call back : 1200 Number of VLAMs: 5 active VLAMs IPSec VPN throughput :5mbps)

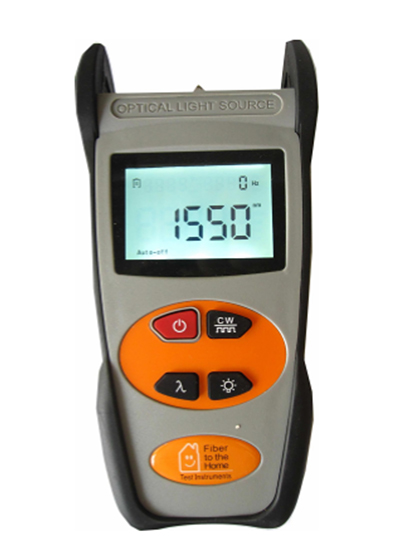

Optical Light Source

Manufacture
ONEFIND
Country Origin
China
Model No
WFG2115
Specification
Operating Wavelength (nm) 1310/1550(Other specify on Requests , Max wavelength is 5, Applicable Fiber : SM.MM, Laser Type : FP –LD (Other specify on Requests), Maximum Output Power(dBm)- 5(can be adjustable other specify), Stability (dB :L15min ,20 ̊C ) ± 0.1, Stability (dB 30min ,20 ̊C ) ± 0.05, Modulation (Hz) Cw.270 1K .2K, Fiber Port FC/PC or FC .SC .ST Interchangeable , Alkaline Battery : 3XAA 1.5V, Battery Operating Time (h) – 45, Operating Temperature ( ̊C) -10 + 60, Storage Temperature ( ̊C) -25 +70 ,Outline Size (mm) 200×90×50, Weight (g) 285

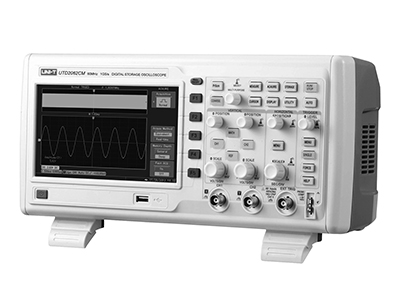

Oscilloscope (20Mz)

Manufacture
UNI-T
Country Origin
China
Model No
UTD2062CM
Specification
Channels : 2, Bandwidth : 60MHz, Sample Time 1GS/s, Rise Time : ≤5.8ns , Memory Depth :32Mpts, Waveform Acquisition Rate : ≥150 00wfms/s, Vertical Sensitivity (V/div) :2mV/div-10v/div, Timebase Range : 2ns /div -50s/div, Storage : Setup ,Wave ,Bitmap,CSV

Ethernet Converter

Ethernet Media Converter
TP-LINK MC111CS
(100Mb/s, single-mode, TX 1550nm, RX 1310nm, SC, 20km)
Distinguishing features
1 x Ethernet port 10/100 Mbps (RJ-45)
maximum transmission distance – 20 km, transmission via one single-mode fiber (WDM), LED indicators showing operating status, easy installation (plug and play), power supply included

Unifi AP LR

Specification
802 11n MIMO Technology , 802 11 b/g/n Wi-Fi Standard , Range of up to 200m & Speed of 300 Mb/s, Unifi Controller Software , 1×10/100 Ethernet port , Integrated 3 dBi Omni Antennas, Guest portal /Hotspot Support , passive Power over Ethernet , 100+ Concurrent Clients each

Optical Terminal Box (12 core OTB)

Model No
OTB-12
Specification
Environmental Temperature -20 ̊C~ + 55 ̊C , Relative temperature ≤85%(+30 ̊C), Weight 2kg , Atmospheric pressure 7kpa~ 106kpa , Adapter type SC. LC , Fiber Type G652D,G657A,OM1-OM4 Supports up to 2pcs 1×8 splitter modules or 1pcs 1×16 splitter modules
,Size 220×180×62mm, Application Wall Mount ,Pole Mount , Characteristic Easy to Install maintain and manage, Accessory 12 pcs Shrinking tube sieeve expansion tube ribbon and sieeve

Fiber Cable Stripper

Brand Name
Snow-Sea
Model No
FTTH Fiber Optic Tool Kit, MILLER CFS-2
Color
Yellow
Material
carbon steel
Application temperature
-20 °C~50 °C
Fiber Optic Cladding Diameter
125um
Package
1pcs/bag&white box
Range Of Application
3mm (w)* 2mm (h) indoor cable
Length
165mm
Weight
120g

Splicer

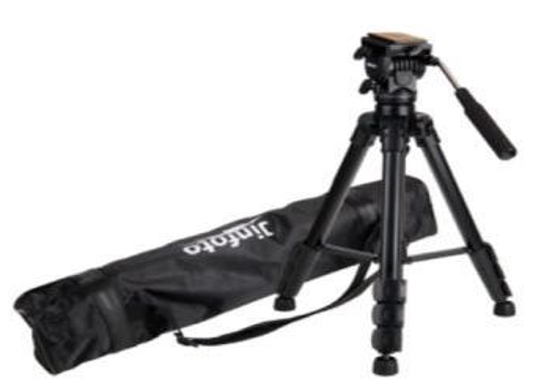

Tripod

VT-2000 Professional Tripod for Digital Camera

Head Type
Ball Head
Leg Lock Type
Self-aligning metal quick-flip leg locks
Maximum Height
62.2″/ 158 cm
Minimum Height
22.83″/ 58 cm
Folded Length
23.62″/ 60 cm
Leg Sections
4
Materials
Aluminum
Color
Black
Maximum Load
5 kg
Weight
2558 g/ 90.23 oz

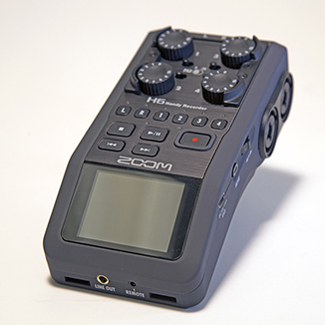

Audio Recorder

Zoom H6 Audio Recorder
Recording Media: SD/SDHC/SDXC

Mic Type
Unidirectional
Sensitivity
41dB, 1kHz at 1Pa
Input Gain
∞ to 46.5dB
Maximum Sound Pressure Input
136dB SPL
Connector
1/8″ stereo mini jack (2.5V power supported)
Input Gain
∞ to 46.5dB
Input Impedance
2 k

Power Electronic Trainer

MK-PE002 Power Electronic Experiment Box
TECHNICAL SPECIFICATION

Size 420×290×140 mm
Power Supply Three-phase four-wire system: 380V/50HZ
Protection: Grounding protection, leakage protection, over current protection
Machine Capacity <0.5KVA

Digital Lab Unit

ETS-9000 Advanced Digital Training System
TECHNICAL SPECIFICATION

Function Generator/Counter
Potentiometer
Pulser Switch
Rotary Encoder
Data Switches
Logic Probe
Speaker – 8Ω / 0.5W
For point tip / BNC socket exchange adapters, 2 sets
Adjustable Power Supply & Fixed Power Supply
Breadboards
Logic Indicators
USB Jack
Power Switch and Fuse

Variable Power Supply

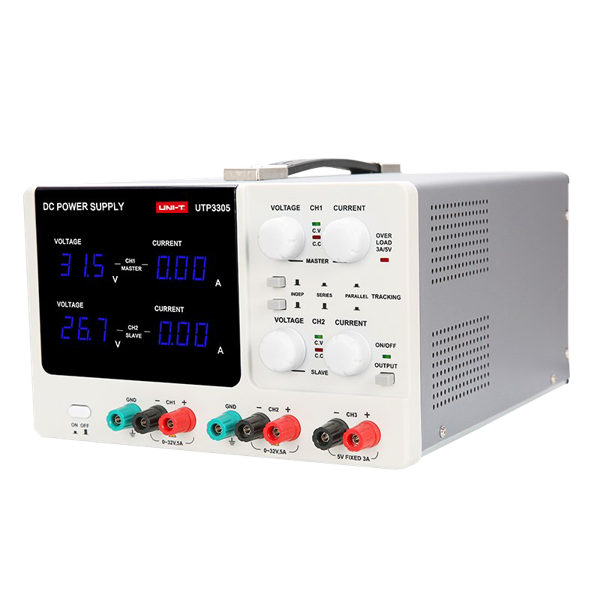

UTP3305 DC Power Supply
TECHNICAL SPECIFICATION

Power Supply
Input voltage: 220VAC/110VA; Frequency:
50Hz/60Hz
Product Color White and grey
Product Weight About 9kg
Product Size (W×H×D) 260mm × 176mm × 317mm
Standard Accessories National standard power cord, output leads
Standard Package Gift box, user manual
Standard Package Quantity 1pcs
Standard Package Size (W×H×D) 430mm × 400mm × 255mm
Standard Package Gross Weight 10kg

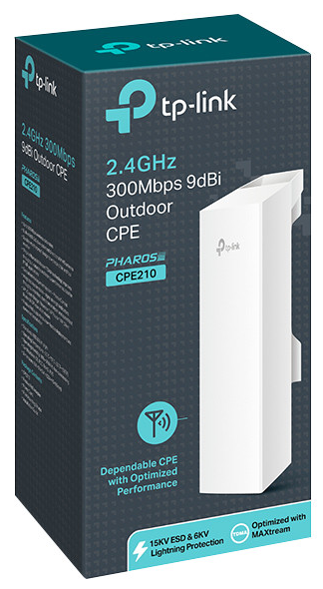

Wireless Router CPE Unit

Manufacture
TP Link
Country Origin
China
Model No
CPE 210
Specification
Standard: IEEE 802.11 b/g/n, Operation Temperature : – 40 ̊C -70 ̊C(40 ̊F -158 ̊F), Operation Humidity :10% ~ 90% RH,Non –Condensing, Certifications : CE, FCC RoHS ,IPX5, Dimensions : 8.8 ×3.1×2.4in (224×79×60mm)
